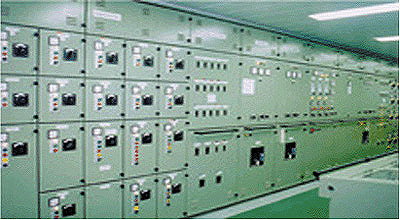

Construction
-Totally Enslosed Dead front/Self Stamding Type / IP22
-MSBD size will be selected in Our standing model based on generator capacity.
-Construction Capable of Withstanding Mechanicalo. Electrical and Thermal
stress due to shock/vibration of the ship circuit fault.
-Easy to access for operation, inspection, maintenance and replacement df part.
-For all bar connection, using special double lock nut.
Power Management System
-pms(power management system) consist of praxis & woodward module.
-interface system with icms (intergrated control and monitoring system)
-auto synchronzing/auto load sharing in parallet running.
-load dependant operation (heavy, light lead/heavy consumer blocking)
-symmetric/asymmetric load sharing.
-st' by gen. selection & gen. engine auto starting at black out.
-auto change over of gen. at bus abnormal(high/low volt, & freg...)
Shaft Generator System
-pti(power take-in)/pto(power take-out)
-instant parallet running.
-constant parrlet running with frequency & synchronous condender.

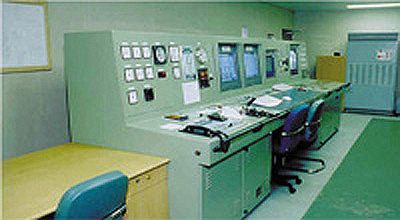

<Engine Control Consol>

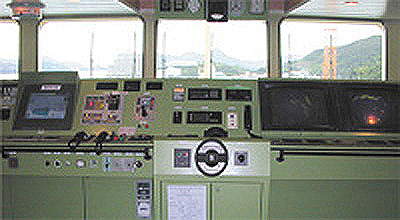

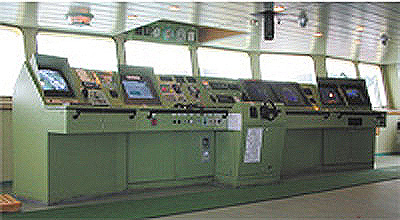

<Bridge Control Consol>

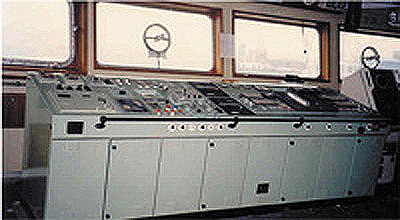

<Ibs Control Console>
-Module unit for fixable design
-Dimesions according to classification rules
-IEC 945 and ISO 8468 complaint
-Easy to install, and all units easilly accessible for service
-Total factory system check

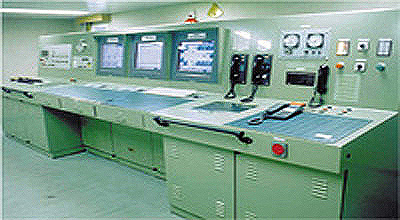

<Cargo Control Console>
Grouping of Device
-For the sake's of crew's convenience.
-Consideration of manual relationship between power & control line.
Parts Arrangement of Grouping
-Design based on using frequency of view.
-According to normal operation sequence & EM'CY situation.

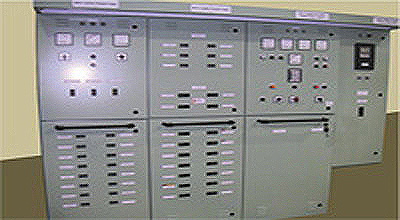

<Emergency Switch Board>
Construction
-Today enclosed dead front/self standing type / ip22.
-MSBD size will be selecred in our standard model based on generator capacity.
-Easy to access for operation, inspection, maintenance and replacement of part.
-For all bus bar connection, using special double lock nut.
-Automatic power change over from MSBD to ESBD.
-Recovery og the power of ESBD can be also automatic.
-Front & Real maintenance or front maintenance only was available.

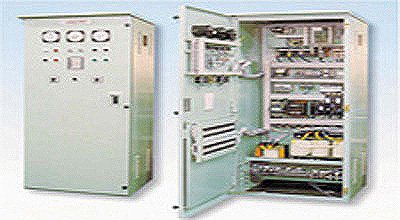

<Battery Charger>
Avaliable Type of Battery Charger
-Auto floating / equalizing charger.
over load/high and low volt/discharging/low insulation alarm.
automatic stop of charging after pre-assigned voltage.
-Manual Charger
Manual voltage adjust with load variation (Nomal 5-stop).
Battery discharging/low insulation monitoring.
